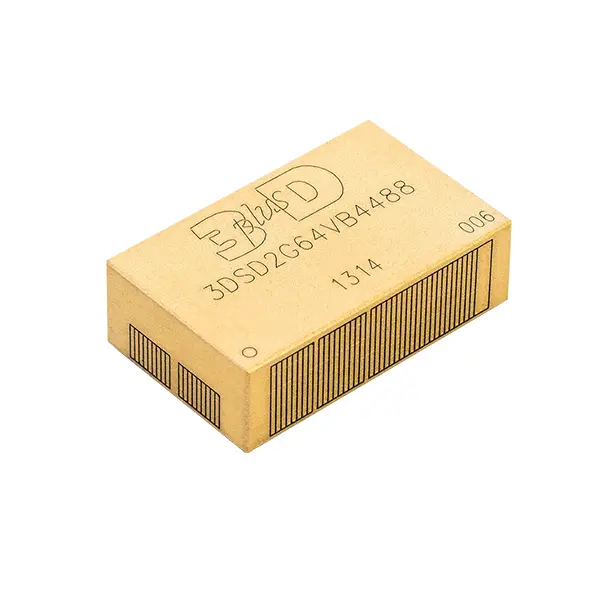

2 Gbit SDRAM (3DSD2G64VB4488)

• Stack of four 512 Mbit SDRAM devices.
• Organized as 32M × 64-bit.
• Single +3.3 V power supply.
• Fully synchronous; all signals registered on the positive edge of the system clock.
• Internal pipelined operation; column address can be changed every clock cycle.
• Programmable burst lengths:
  • 1
  • 2
  • 4
  • 8
  • Full page
• Auto Precharge, including Concurrent Auto Precharge and Auto Refresh modes.
• LVTTL-compatible inputs and outputs.
• Available temperature ranges:
  • 0°C to +70°C
  • -40°C to +85°C
  • -40°C to +105°C (specific option)
• Available with screening option for high-reliability applications (space, etc.).

Description

The 3DSD2G64VB4488 is packaged in a 119 ball BGA.
